X5H01431ABK1H-V晶振,HELE耐高溫陶瓷晶振,航天飛行器晶振

編號：22084671
頻率：14.31818MHz
尺寸：5032mm

X5H01431ABK1H-V晶振,HELE耐高溫陶瓷晶振,航天飛行器晶振，特點：微型超薄SMD產品尺寸（7.05.00.55max）。高精度、可靠性高，耐熱性好的有源晶振。針對射頻應用、無線模塊設備、RFID應用和其他基于消費者的產品的優化...

分享到

X5H01431ABK1H-V晶振,HELE耐高溫陶瓷晶振,航天飛行器晶振，特點：微型超薄SMD產品尺寸（7.0×5.0×0.55 max）。高精度、可靠性高，耐熱性好的有源晶振。針對射頻應用、無線模塊設備、RFID應用和其他基于消費者的產品的優化解決方案。臺灣加高晶振公司，HELE晶振，小尺寸晶振，7050晶振，有源晶振，超小型晶振，低損耗晶振，高品質晶振，高精度晶振，程控交換機晶振，無人機晶振，北斗衛星定位模塊晶振，高精度晶振，6G室外基站晶振，電腦主板晶振，臺產晶振。

X5H01431ABK1H-V晶振,HELE耐高溫陶瓷晶振,航天飛行器晶振

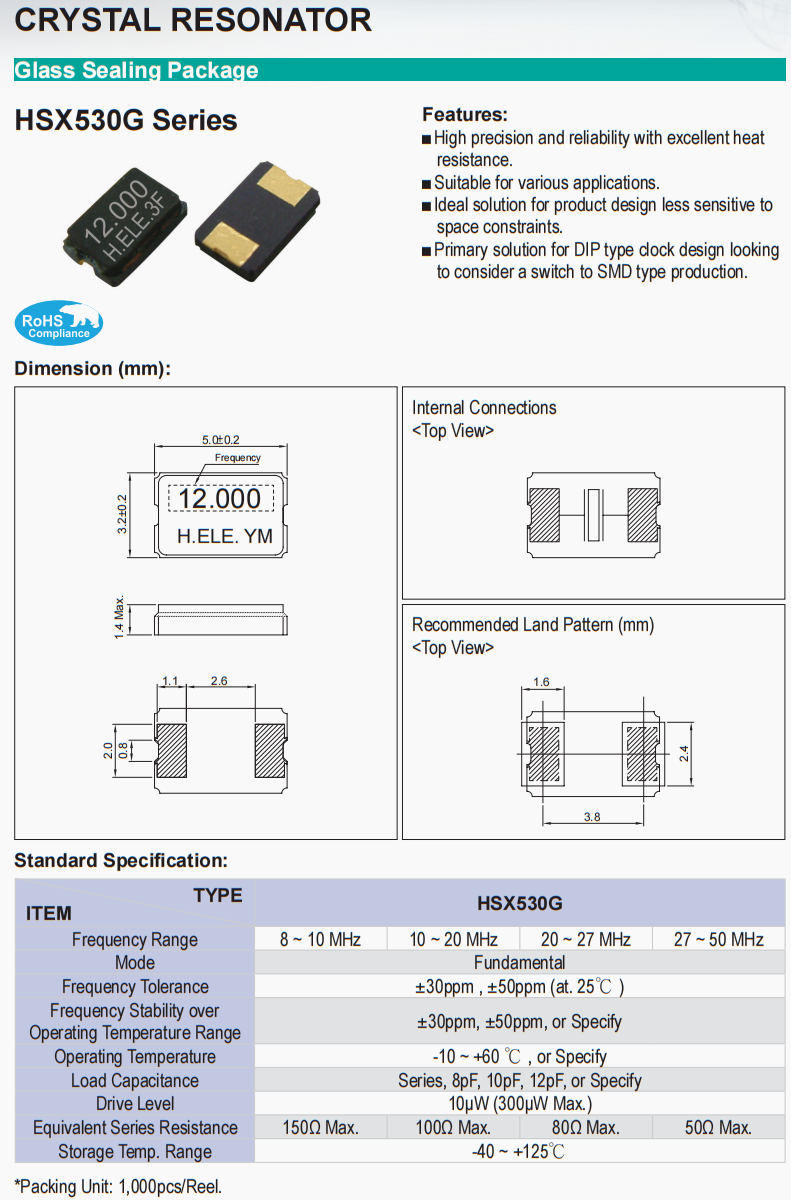

項目	HSX530G
頻率范圍	8 ~ 10 MHz	10 ~ 20 MHz	20 ~ 27 MHz	27 ~ 50 MHz
工作模式	Fundamental
頻率容差	±30ppm , ±50ppm (at. 25℃ )
溫度范圍內的頻率穩定度	±30ppm, ±50ppm, or Specify
工作溫度	-10 ~ +60 ℃ , or Specify
負載電荷	Series, 8pF, 10pF, 12pF, or Specify
驅動電平	10μW (300μW Max.)
等效串聯電阻	150Ω Max.	100Ω Max.	80Ω Max.	50Ω Max.
儲存溫度范圍	-40 ~ +125℃

X5H01431ABK1H-V晶振,HELE耐高溫陶瓷晶振,航天飛行器晶振

原廠編碼	生產商	型號	頻率	頻率容差	負載電容
X5H008000DC1H-W	加高晶振	HSX530G	8 MHz	±20ppm	12pF
X5H008000FC1H-X	加高晶振	HSX530G	8 MHz	±30ppm	12pF
X5H008000FF1H	加高晶振	HSX530G	8 MHz	±30ppm	15pF
X5H008000DK1H	加高晶振	HSX530G	8 MHz	±50ppm	20pF
X5H008000FK1H-X	加高晶振	HSX530G	8 MHz	±50ppm	20pF
X5H008000IK1H-H	加高晶振	HSX530G	8 MHz	±50ppm	20pF
X5H012288FI1H	加高晶振	HSX530G	12.288 MHz	±30ppm	18pF
X5H012000FC1H-X	加高晶振	HSX530G	12 MHz	±50ppm	12pF
X5H013560FC1H-X	加高晶振	HSX530G	13.56 MHz	±30ppm	12pF
X5H01431AFK1H-X	加高晶振	HSX530G	14.31818 MHz	±30ppm	20pF
X5H015360FK1H-X	加高晶振	HSX530G	15.36 MHz	±50ppm	20pF
X5H022118DK1H-W	加高晶振	HSX530G	22.1184 MHz	±20ppm	20pF
X5H024000DC1H-X	加高晶振	HSX530G	24 MHz	±30ppm	12pF
X5H025000DK1H	加高晶振	HSX530G	25 MHz	±30ppm	20pF
X5H025000FK1H-X	加高晶振	HSX530G	25 MHz	±30ppm	20pF
X1H016000FI1H-X	加高晶振	HSX531	16 MHz	±30ppm	18pF
X1H008000DC1H-U	加高晶振	HSX531S	8 MHz	±20ppm	12pF
X1H008000DI1H-HW	加高晶振	HSX531S	8 MHz	±20ppm	18pF
X1H008000DK1H-X	加高晶振	HSX531S	8 MHz	±50ppm	20pF
X1H012000FK1H	加高晶振	HSX531S	12 MHz	±50ppm	7pF
X1H012000FK1H-X	加高晶振	HSX531S	12 MHz	±50ppm	20pF
X1H016000FK1H-X	加高晶振	HSX531S	16 MHz	±50ppm	20pF
X1H020000FK1H-X	加高晶振	HSX531S	20 MHz	±50ppm	20pF
X1H022118DK1H	加高晶振	HSX531S	22.1184 MHz	±50ppm	20pF
X1H022118FK1H-V	加高晶振	HSX531S	22.1184 MHz	±30ppm	20pF
X1H025000FK1H	加高晶振	HSX531S	25 MHz	±30ppm	20pF
X1H025000FK1HA-X	加高晶振	HSX531S	25 MHz	±50ppm	20pF
X1H027000DK1H-HV	加高晶振	HSX531S	27 MHz	±20ppm	20pF
X1H008000DC1H-U	加高晶振	HSX531S	8 MHz	±20ppm	12pF
X1H008000DI1H-HW	加高晶振	HSX531S	8 MHz	±20ppm	7pF
X1H025000FK1H	加高晶振	HSX531S	25 MHz	±30ppm	20pF
X1H025000FK1HA-X	加高晶振	HSX531S	25 MHz	±50ppm	20pF
X5H008000DK1H	加高晶振	HSX530G	8 MHz	±50ppm	20pF
X5H008000FC1H-X	加高晶振	HSX530G	8 MHz	±30ppm	12pF
X5H008000FF1H	加高晶振	HSX530G	8 MHz	±30ppm	15pF
X5H012000FC1H-X	加高晶振	HSX530G	12 MHz	±50ppm	12pF
X5H022118DK1H-W	加高晶振	HSX530G	22.1184 MHz	±20ppm	20pF
